12V DC Single Acting Hydraulic Pump – 3.75 Gallon (15 Quart) Steel Hydraulic Power Unit for Dump Trailer, Dump Truck & Industrial Use Mixizap

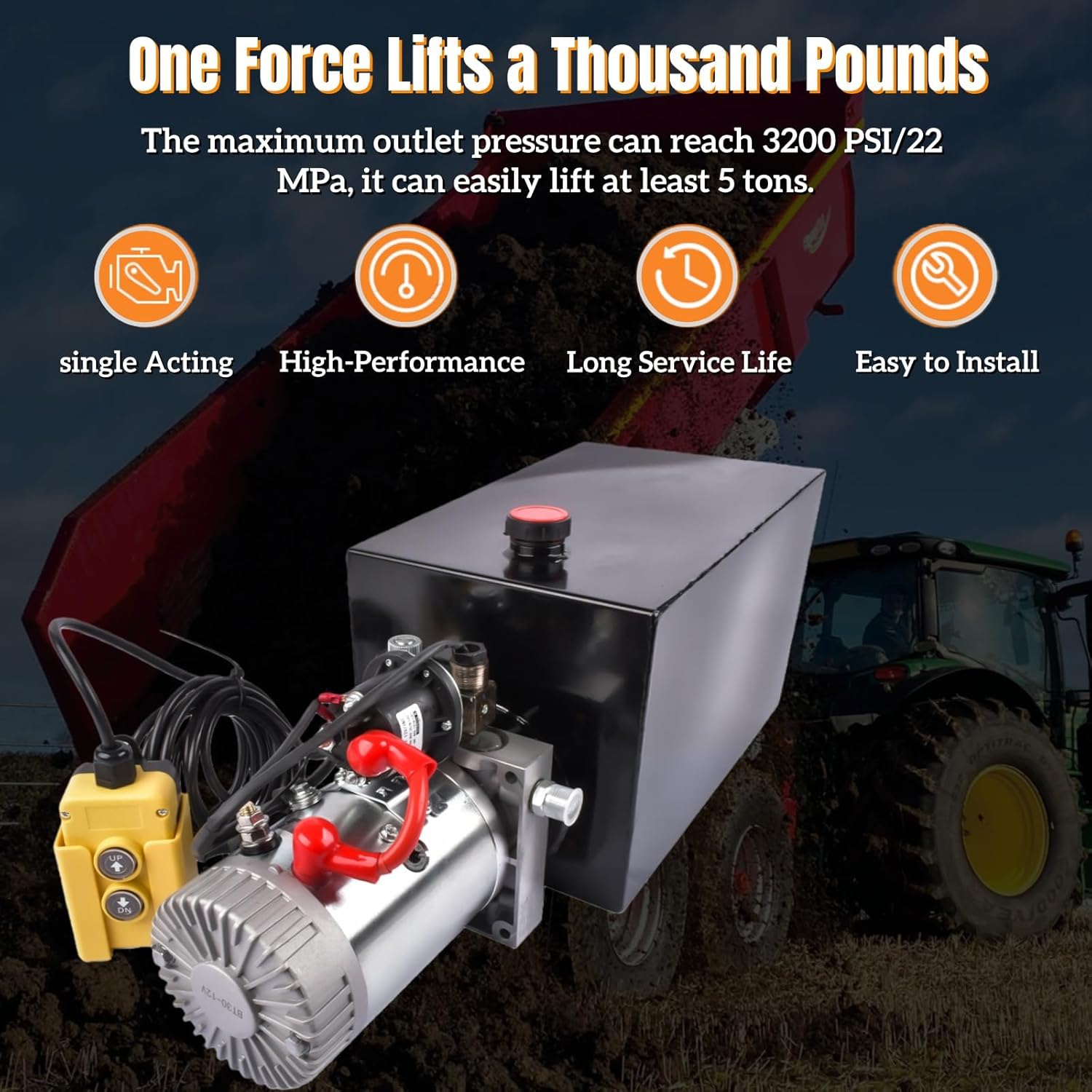

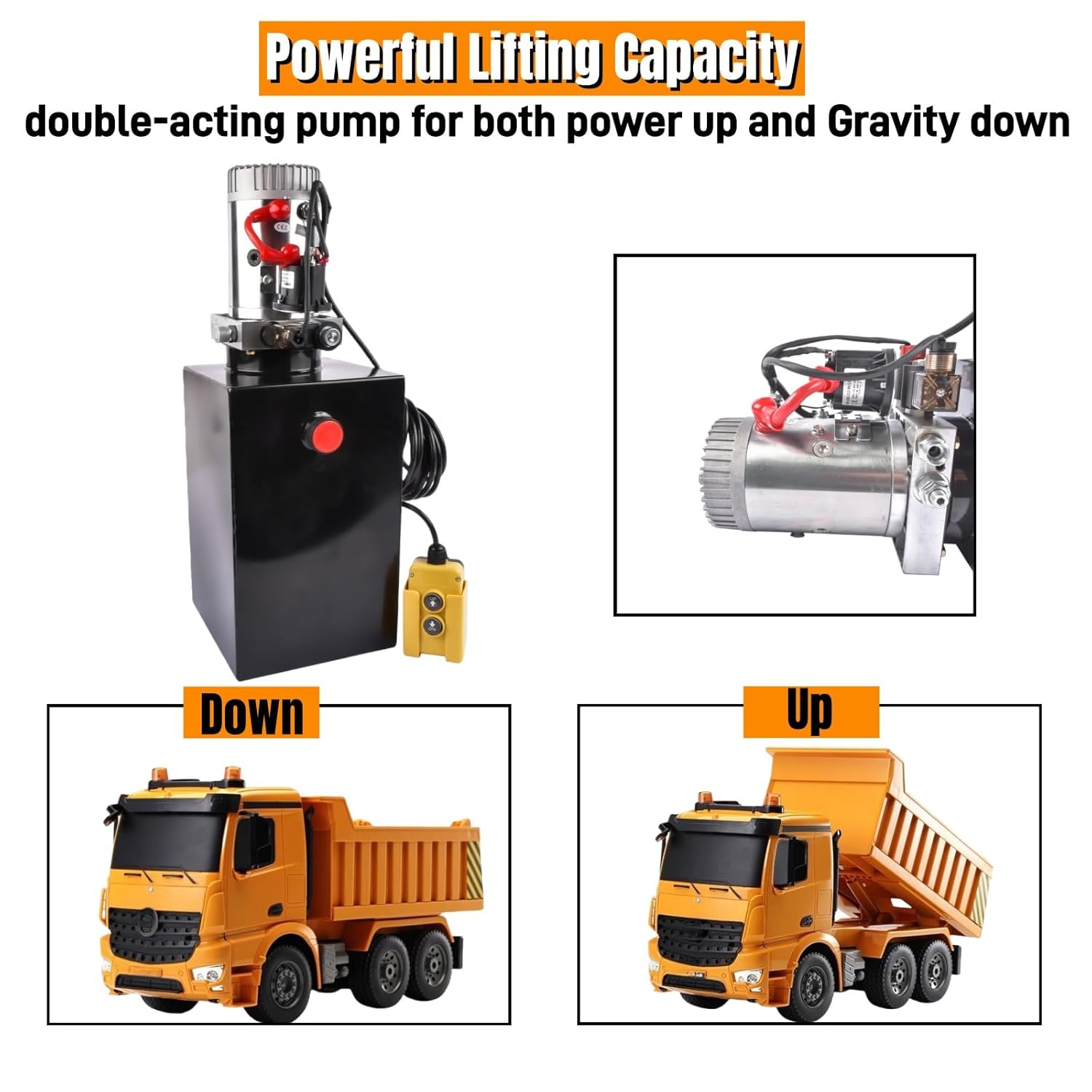

SpecificationsTank Material: Iron ReservoirTank Capacity: 15LActing: Single-Acting Power-Up/ Gravity DownPressure: 3200 PSI Max. Relief Setting For Increased Lifting Power on A portVoltage: 12V DCPump: 2.0 GPMRelief Setting for Increased Lifting Power On A PortSAE #6 Port, Horizontal MountHandheld Pendant with 20' Removable Cord FeatureProduct Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3kw) and a 15-quart reservoir. The max relief pressure is 3200 PSI; it is a single-acting pump for power up and gravity down.Easy to Use: This 12V hydraulic power unit has been fully assembled. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

• 【High-Powered 12V Hydraulic Pump】: Experience robust performance with a 1.6kW DC motor delivering a high flow rate of 0.91 GPM for fast, efficient operation. Built with corrosion-resistant materials for enhanced durability and a longer lifespan
• 【Heavy-Duty Power Unit】: Features a single-acting 15-quart metal reservoir, 12V DC motor, and SAE #6 port connectors. Max relief settings of 3200 PSI (A port) and 1500 PSI (B port) for reliable pressure control, plus a 15ft remote pendant for convenient long-distance operation
• 【Quick & Efficient Lifting/Lowering】: Engineered for fast, reliable starts with double-action functionality for smooth lifting and lowering. Ensure correct battery connection for instant oil output and high-efficiency performance in heavy-duty tasks
• 【15FT Remote Control】: Includes a long 15ft pendant for easy operation from a distance. The 15-quart metal tank is rugged for vertical/horizontal mounting, with two extra SAE #6 connectors included for replacements
• 【Versatile Hydraulic Applications】: Ideal for dump trailers, truck tailgates, scissor lifts, snowplows, wheelchair lifts, and more. Perfect for any job requiring hydraulic cylinder extension in material handling, construction, or industrial settings
